Magnuson 2650 Jackshaft LS3/LSA Supercharger
Magnuson 2650 LS3/LSA Supercharger
Optimized inlet porting using Magnuson’s patented dynamic flow technology (DFT). Eaton TVS2650 high-helix rotor technology provides optimum efficiency across the entire rpm band
- Huge 2.65L supercharger, designed for 1,000+ hp
- Has massive intercooler brick that is 80% larger than an LSA, for maximum cooling
- Compatible with LS rectangle port heads (if using cathedral port heads then pair with our 551316 adapter)
- Includes: supercharger with fuel rails (for LS3 length injectors), (does not include pulley (see images for part #'s))

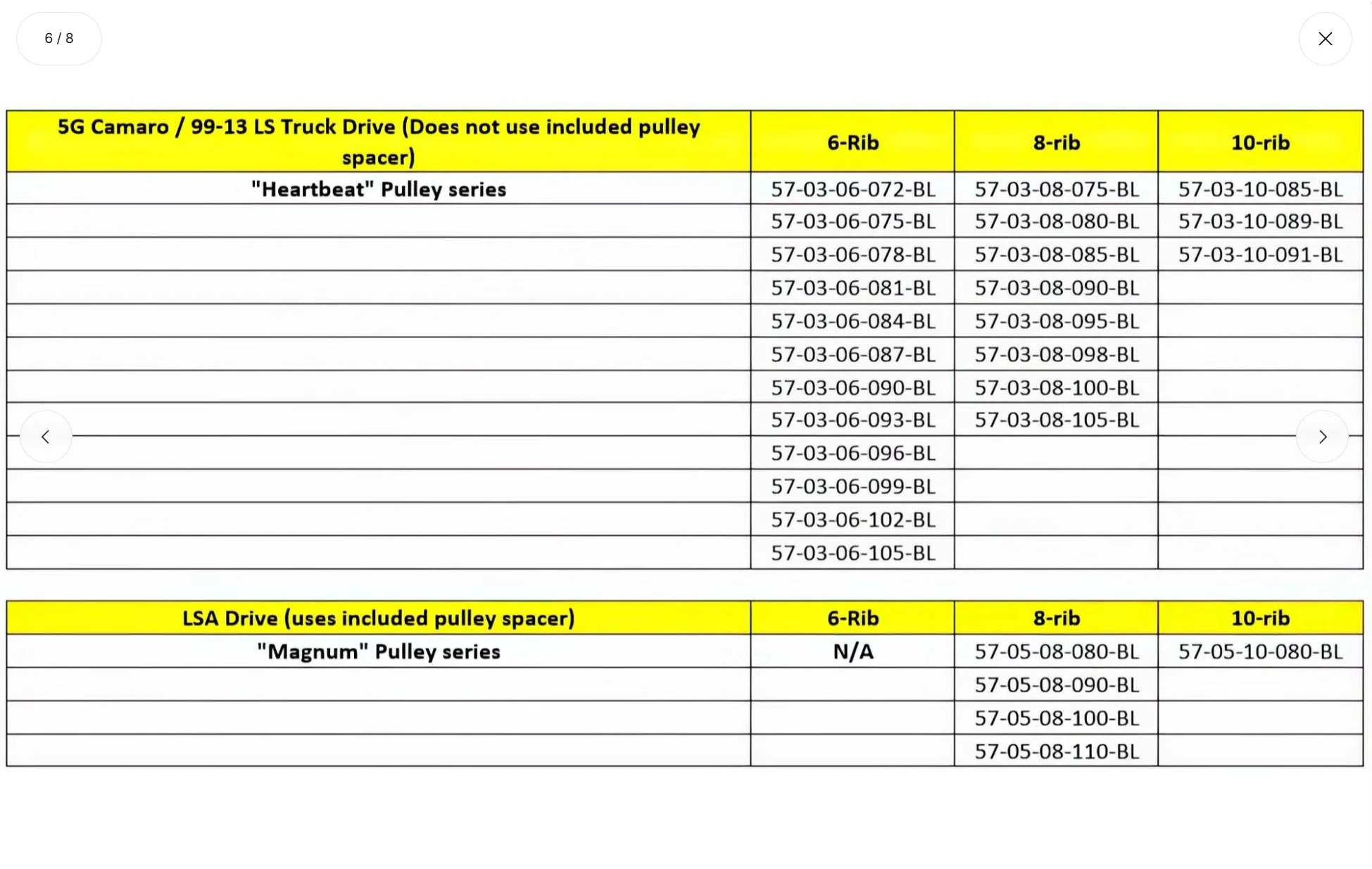

- Works with 57-05-08-XXX-BL pulley series (we recommend 8 rib pulley for LSA belt alignment)
- Pair this with our LSA accessory drive (call us if you need help for the exact part numbers for your ride!)

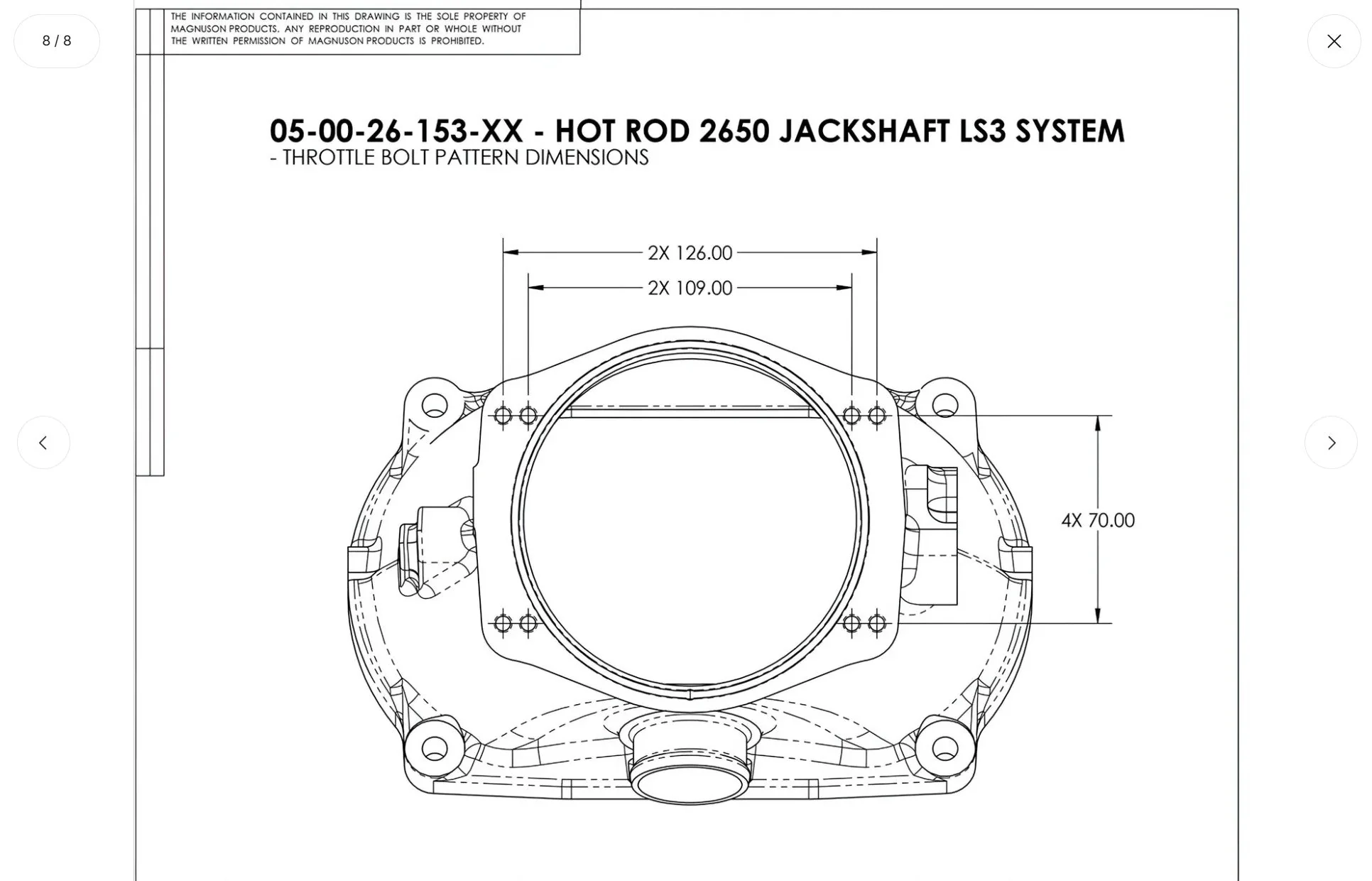

- Compatible with 112mm throttle body SKU NW-SD112LSXBK or LT5 (LS3/103mm throttle bodys must use adapter SKU MAG-31-23-05-053)
- Jackshaft design with an interchangeable rear cog belt system allowing for drive ratio optimization. Supplied with standard 32 and 34 tooth cogs for up to 6% overdrive of front pulley.
- 3-year 36k Mile Limited Powertrain Warranty
$2,868.25
Original: $8,195.00
-65%Magnuson 2650 Jackshaft LS3/LSA Supercharger—
$8,195.00
$2,868.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Magnuson 2650 LS3/LSA Supercharger
Optimized inlet porting using Magnuson’s patented dynamic flow technology (DFT). Eaton TVS2650 high-helix rotor technology provides optimum efficiency across the entire rpm band
- Huge 2.65L supercharger, designed for 1,000+ hp
- Has massive intercooler brick that is 80% larger than an LSA, for maximum cooling
- Compatible with LS rectangle port heads (if using cathedral port heads then pair with our 551316 adapter)
- Includes: supercharger with fuel rails (for LS3 length injectors), (does not include pulley (see images for part #'s))
- Works with 57-05-08-XXX-BL pulley series (we recommend 8 rib pulley for LSA belt alignment)
- Pair this with our LSA accessory drive (call us if you need help for the exact part numbers for your ride!)
- Compatible with 112mm throttle body SKU NW-SD112LSXBK or LT5 (LS3/103mm throttle bodys must use adapter SKU MAG-31-23-05-053)
- Jackshaft design with an interchangeable rear cog belt system allowing for drive ratio optimization. Supplied with standard 32 and 34 tooth cogs for up to 6% overdrive of front pulley.
- 3-year 36k Mile Limited Powertrain Warranty
